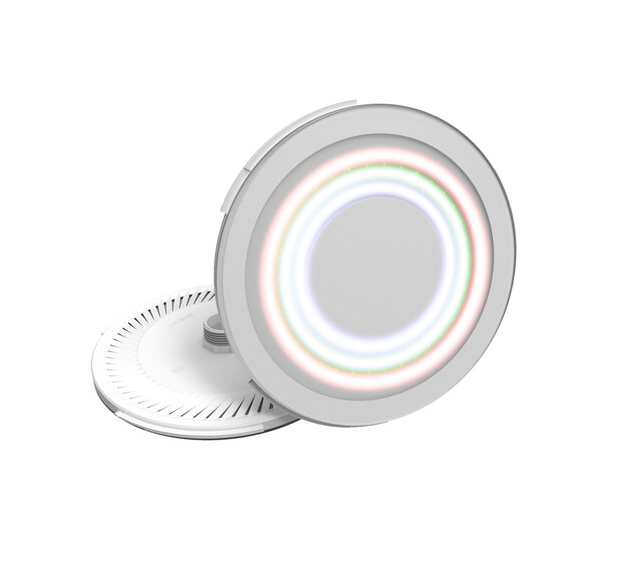

Allegro LED Pool Light – 50/100/170 mm – NoAir™, QuickConnect™, DuraLink™

Overview

The Allegro LED Pool Light Series is an advanced lighting solution built on the same high-performance platform as the VISION Pro range. Designed for maximum durability, easy installation and outstanding luminosity, Allegro lights feature a wide beam angle, ultra-flat shape and a resin-filled NoAir™ housing for complete waterproof reliability. Available in RGBW, White (WH) and Warm White (WW), the Allegro range fits both new pool installations and PAR56 retrofit upgrades.

Available Versions

• RGBW – full colour mixing, 14 fixed colour programs, adjustable white tones.
• WH (White) – high-intensity, pure white illumination.
• WW (Warm White) – warm, ambient white lighting for a softer visual effect.

All versions are available in three diameters: Ø50 mm, Ø100 mm and Ø170 mm.

Main Features

• Three sizes available: Ø50 / Ø100 / Ø170 mm.
• RGBW includes: 14 colour programs, white tones, ON/OFF control, PLC communication.
• Dimming function (RGBW) via PLC control.
• 12 VAC / 2-wire power input.
• Impact-resistant polymer housing.
• Included accessories:
  • Allegro lamp
  • 3 m 2-wire power cable
  • QuickConnect™ kit with Magic Nut
  • PAR56 retrofit kit (170 mm only)
• Must always be used with a toroidal transformer for safe operation.

Characteristics Specific to Allegro

• Wide beam angle for superior pool illumination.
• NoAir™ waterproof housing – resin-filled, no condensation, no leaks, maximum lifespan.
• PAR56 retrofit compatibility (170 mm version only).
• Fully compatible with salt electrolysis systems.
• Ultra-flat design prevents accidental stepping and damage.
• Fast and easy installation using:
  • QuickConnect™ – tool-free, gold-contact connector
  • PressFit™ – corrects misaligned conduits
  • ClickOn™ – interchangeable face plates
• Personalise with VISION Face Plates.
• Free colour selection (RGBW) when used with the LINK Touch remote.
• Home automation control via RS485 / DMX512 when paired with LINK Controller or LINK Master.
• Part of the DuraLink™ connected product range.

Technical Specifications

Ideal For

Allegro lights are ideal for new pool builds, refurbishments and PAR56 niche replacements. Thanks to their wide beam, NoAir™ waterproof design and fast mounting technologies, they provide a premium and future-proof lighting solution for both residential and commercial pools.
