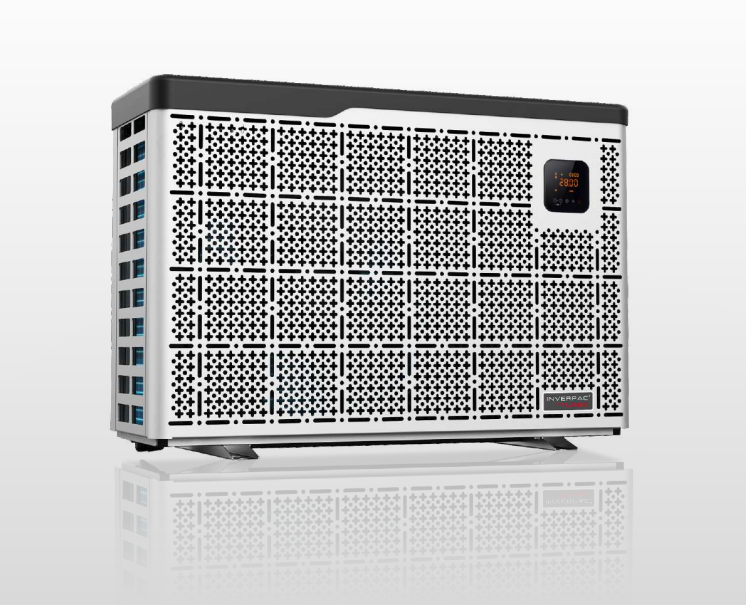

BLUE INVERPAC 09 – Full Inverter Swimming Pool Heat Pump
The BLUE INVERPAC 09 is a compact and efficient full-inverter swimming pool heat pump designed for small residential pools. Recommended for pools with a volume of 10–26 m³, it provides excellent heating performance, low operating costs and extremely quiet operation. Its advanced inverter technology ensures smooth and energy-efficient modulation of compressor and fan speed.
Main Features
- Full-inverter technology for optimal energy savings and smooth operation.
- High COP across a wide range of conditions for reduced running costs.
- Very low noise level, ideal for residential environments.
- Titanium heat exchanger compatible with all pool disinfection systems, including saltwater.
- Soft-start system to protect electrical installations.
- Easy-to-use digital control panel for precise temperature management.
Technical Specifications
| Model | BLUE INVERPAC 09 |
|---|---|
| BP Number | 150101001 |
| Advised Pool Volume | 10–26 m³ |
| Heating Capacity (Air 28°C / Water 28°C) – Turbo | 9 kW |
| Heating Capacity (Air 28°C / Water 28°C) – Smart | 7 kW |
| Power Consumption (Turbo → Smart) | 1.47–0.32 kW |
| Heating Capacity (Air 15°C / Water 26°C) | 5.2 kW |
| COP (Air 15°C / Water 26°C) | 5.3–3.7 |
| Heating Capacity (Air 35°C / Water 28°C) | 10.5 kW |
| COP (Air 35°C / Water 28°C) | 5.7 |
| Mechanical Expansion Capacity | 5.2–1.97 |
| Noise Level (1m / 10m) | 41–49 dB(A) / 23–33 dB(A) |
| Water Connection | 50 mm |
| Power Supply | 220–240V / 50Hz |
| Running Current | 4.25–0.53 A |
| Net Dimensions (L × W × H) | 904 × 353 × 602 mm |
| Gross Dimensions (L × W × H) | 1008 × 404 × 750 mm |
| Net Weight | 45 kg |
| Gross Weight | 54 kg |
| Phase | 1PH |
| Supplier Number | INVERPAC 09 |
Why Choose BLUE INVERPAC?
The BLUE INVERPAC 09 combines compact dimensions, high efficiency and quiet operation, making it the ideal heating solution for small private swimming pools. Its inverter system provides precise temperature control with minimal energy use, ensuring comfortable and economical pool heating throughout the season.
Service & Support in Ireland
BluePulse Advanced Swimming Pool Engineering Limited provides full warranty and post-warranty service for all BLUE INVERPAC heat pumps. Our certified technicians offer professional support, diagnostics and repairs across the entire territory of Ireland, ensuring long-term reliability and optimal performance of your heating system.
