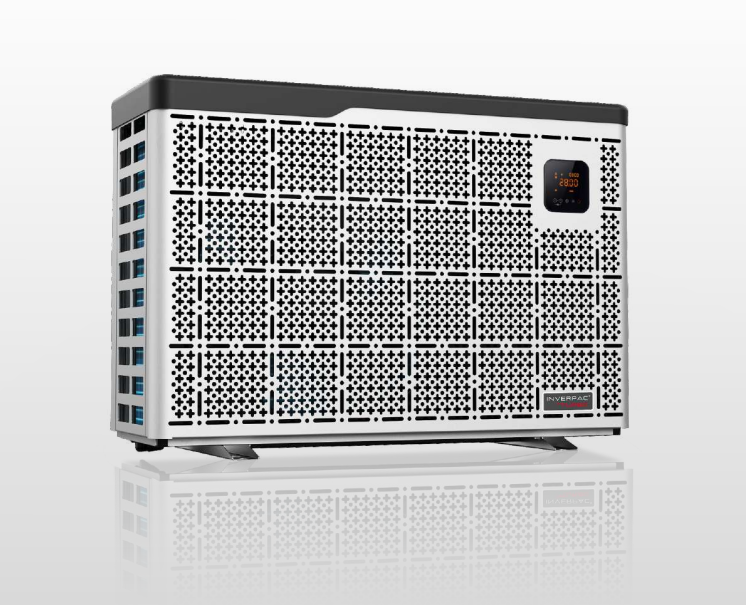

BLUE INVERPAC 14 – Full Inverter Swimming Pool Heat Pump
The BLUE INVERPAC 14 is a powerful full-inverter heat pump designed for medium and large residential pools. With an advised pool volume of 16–60 m³, it delivers excellent heating performance with high efficiency, quiet operation and advanced inverter control for optimal energy savings throughout the swimming season.
Main Features
- Full-inverter technology – continuously adjusts compressor and fan speed for maximum efficiency.
- High COP values across a wide operating range, reducing energy consumption.
- Quiet operation even at higher heating loads.
- Titanium heat exchanger for long-term corrosion resistance, including saltwater pools.
- Soft-start system prevents electrical current surges.
- Equipped with a digital control panel for user-friendly operation.
Technical Specifications
| Model | BLUE INVERPAC 14 |
|---|---|
| BP Number | 150101003 |
| Advised Pool Volume | 16–60 m³ |
| Heating Capacity (Air 28°C / Water 28°C) | 14 kW |
| COP (Air 28°C / Water 28°C) | 13.3–6.3 |
| Heating Capacity (Air 15°C / Water 26°C) | 10 kW |
| COP (Air 15°C / Water 26°C) | 6.8–4.2 |
| Heating Capacity (Air 35°C / Water 28°C) | 15.8 kW |
| COP (Air 35°C / Water 28°C) | 7.3 |
| Mechanical Expansion Capacity | 10.5–3.16 |
| Noise Level (1m / 10m) | 46–54 dB(A) / 28–38 dB(A) |
| Water Connection | 50 mm |
| Power Supply | 220–240V / 50Hz |
| Running Current | 5.47–0.77 A |
| Net Dimensions (L × W × H) | 1217 × 331 × 723 mm |
| Gross Dimensions (L × W × H) | 1309 × 380 × 864 mm |
| Net Weight | 68 kg |
| Gross Weight | 77 kg |
| Phase | 1PH |
| Supplier Number | INVERPAC 14 |
Why Choose BLUE INVERPAC?
The BLUE INVERPAC series is engineered for premium efficiency, quiet performance and long-term reliability. The INVERPAC 14 is an excellent choice for medium-sized pools where consistent heating and reduced operating costs are essential.
Service & Support in Ireland
BluePulse Advanced Swimming Pool Engineering Limited provides full warranty and post-warranty service for all BLUE INVERPAC heat pumps. Our certified technicians offer professional support, diagnostics and repairs across the entire territory of Ireland, ensuring long-term reliability and optimal performance of your heating system.
